4.1. Chart Line

• Show linear relation of two variables

4.1.1. Syntax

import matplotlib.pyplot as plt


x = [1, 2, 3, 4]
y = [1, 2, 3, 4]

plt.plot(x, y)
plt.show()  # doctest: +SKIP

4.1.2. Single Plot

Vectorized Operations:

import matplotlib.pyplot as plt
import numpy as np
np.random.seed(0)

x = np.arange(0, 10)
y = np.random.randint(0, 10, size=10)

plt.plot(x, y)
plt.show()  # doctest: +SKIP

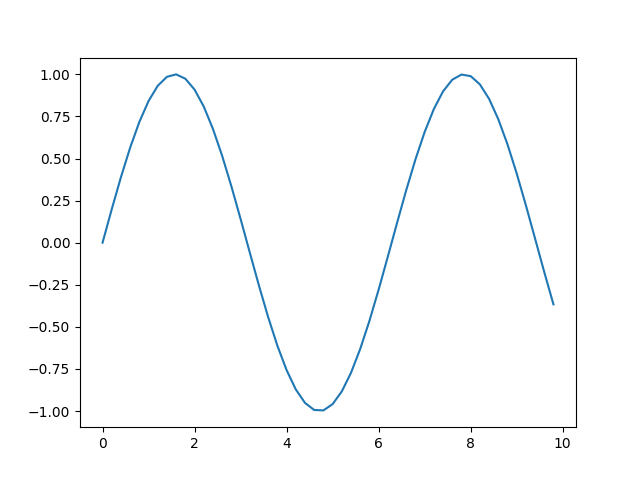

Universal Function:

import matplotlib.pyplot as plt
import numpy as np


x = np.linspace(0, 10, 1000)
y = np.sin(x)

plt.plot(x, y)
plt.show()  # doctest: +SKIP

4.1.3. Multiple Plots

import matplotlib.pyplot as plt


x1 = [1, 2, 3, 4]
y1 = [1, 2, 3, 4]

x2 = [1, 2, 3, 4]
y2 = [4, 3, 3, 2]

plt.plot(x1, y1)
plt.plot(x2, y2)
plt.show()  # doctest: +SKIP

Universal Function:

import matplotlib.pyplot as plt
import numpy as np


x = np.linspace(0, 10, 1000)
y1 = np.sin(x)
y2 = np.cos(x)

plt.plot(x, y1)
plt.plot(x, y2)
plt.show()  # doctest: +SKIP

Inlined Universal Function:

import matplotlib.pyplot as plt
import numpy as np


x = np.linspace(0, 10, 1000)

plt.plot(x, np.sin(x))
plt.plot(x, np.cos(x))
plt.show()  # doctest: +SKIP

Vectorized Operation:

import matplotlib.pyplot as plt
import numpy as np


x = np.linspace(0, 2, 100)

plt.plot(x, x)
plt.plot(x, x**2)
plt.plot(x, x**3)
plt.show()  # doctest: +SKIP

Universal Function and Vectorized Operation:

import matplotlib.pyplot as plt
import numpy as np
np.random.seed(0)


noise = np.random.normal(0.0, 0.1, size=1000)

x1 = np.linspace(0, 2*np.pi, 1000)
y1 = np.sin(x1) + noise

x2 = np.linspace(2*np.pi, 3*np.pi, 20)
y2 = np.sin(x2)

plt.plot(x1, y1)
plt.plot(x2, y2, linestyle='--')
plt.show()  # doctest: +SKIP
