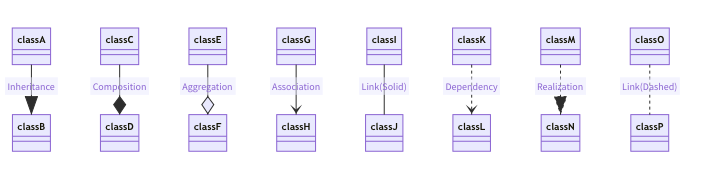

2.7. UML Relationship

• Arrow with empty triangle (but on picture is filled)

• <|-- - Inheritance

• *-- - Composition

• o-- - Aggregation

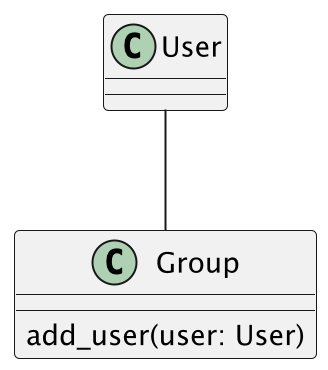

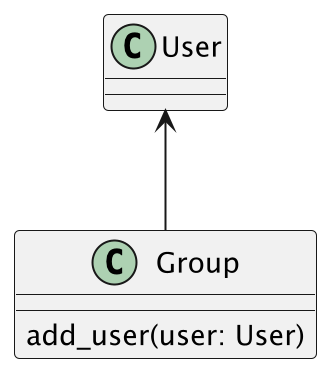

• --> - Association

• -- - Link (Solid)

• ..> - Dependency

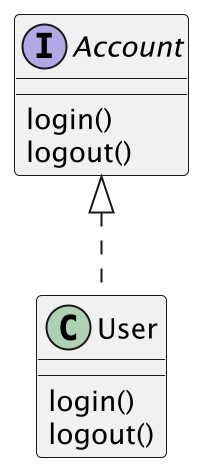

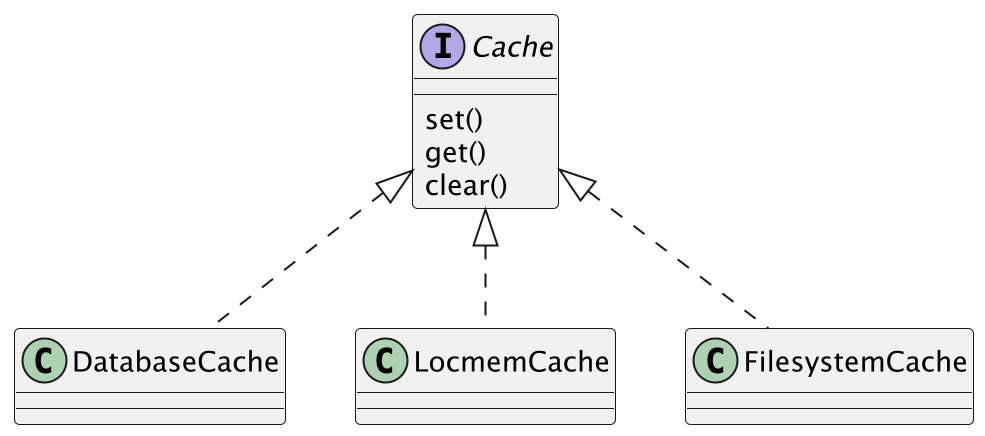

• ..|> - Realization

• .. - Link (Dashed)

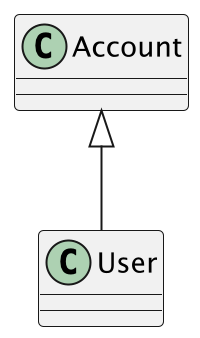

2.7.1. Inheritance

>>> class Vehicle:
...     def engine_start(self): pass
...     def engine_stop(self): pass
>>>
>>>
>>> class Car(Vehicle):
...     pass
>>>
>>> class Truck(Vehicle):
...     pass
>>>
>>> class Motorcycle(Vehicle):
...     pass

```mermaid
classDiagram
    Vehicle <|-- Car
    Vehicle <|-- Truck
    Vehicle <|-- Motorcycle

    class Vehicle {
        engine_start()
        engine_stop()
    }
```

2.7.2. Multilevel Inheritance

>>> class Vehicle:
...     def engine_start(self): pass
...     def engine_stop(self): pass
>>>
>>> class VehicleWithWindows(Vehicle):
...     def window_open(self): pass
...     def window_close(self): pass
>>>
>>>
>>> class Car(VehicleWithWindows):
...     pass
>>>
>>> class Truck(VehicleWithWindows):
...     pass
>>>
>>> class Motorcycle(Vehicle):
...     pass

```mermaid
classDiagram
    Vehicle <|-- Motorcycle
    Vehicle <|-- VehicleWithWindows
    VehicleWithWindows <|-- Car
    VehicleWithWindows <|-- Truck

    class Vehicle {
        engine_start()
        engine_stop()
    }

    class VehicleWithWindows {
        window_open()
        window_close()
    }
```

2.7.3. Multiple Inheritance

• Also know as Mixin Classes

>>> class Vehicle:
...     pass
>>>
>>> class HasEngine:
...     def engine_start(self): pass
...     def engine_stop(self): pass
>>>
>>> class HasWindows:
...     def window_open(self): pass
...     def window_close(self): pass
>>>
>>> class Car(Vehicle, HasEngine, HasWindows):
...     pass
>>>
>>> class Truck(Vehicle, HasEngine, HasWindows):
...     pass
>>>
>>> class Motorcycle(Vehicle, HasEngine):
...     pass

```mermaid
classDiagram
    HasWindows --* Car
    HasWindows --* Truck

    Vehicle --* Car
    Vehicle --* Truck
    Vehicle --* Motorcycle

    class Vehicle {
        engine_start()
        engine_stop()
    }

    class HasWindows {
        window_open()
        window_close()
    }
```

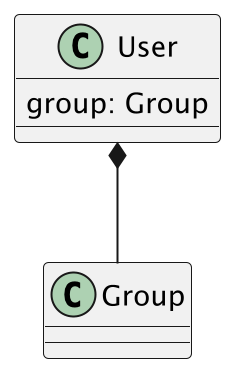

2.7.4. Composition

>>> class Vehicle:
...     pass
>>>
>>> class Engine:
...     def engine_start(self): pass
...     def engine_stop(self): pass
>>>
>>> class Windows:
...     def window_open(self): pass
...     def window_close(self): pass
>>>
>>>
>>> class Car(Vehicle):
...     engine: Engine
...     window: Windows
>>>
>>> class Truck(Vehicle):
...     engine: Engine
...     window: Windows
>>>
>>> class Motorcycle(Vehicle):
...     engine: Engine

```mermaid
classDiagram

    class Engine {
        engine_start()
        engine_stop()
    }

    class Car {
        engine: Engine
    }

    class Truck {
        engine: Engine
    }

    class Motorcycle {
        engine: Engine
    }
```

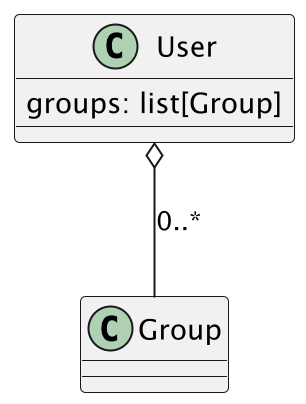

2.7.5. Aggregation

>>> class Mission:
...     year: int
...     name: str
>>>
>>>
>>> class Astronaut:
...     firstname: str
...     lastname: str
...     mission: list[Mission]

>>> class Vehicle:
...     pass
>>>
>>> class Part:
...     pass
>>>
>>> class Engine(Part):
...     def engine_start(self): pass
...     def engine_stop(self): pass
>>>
>>> class Windows(Part):
...     def window_open(self): pass
...     def window_close(self): pass
>>>
>>>
>>> class Car(Vehicle):
...     parts: list[Part] = [Engine, Windows]
>>>
>>> class Truck(Vehicle):
...     parts: list[Part] = [Engine, Windows]
>>>
>>> class Motorcycle(Vehicle):
...     parts: list[Part] = [Engine]

```mermaid
classDiagram
    Astronaut *--|> Mission

    class Astronaut {
        firstname: str
        lastname: str
        missions: list[Mission]
    }

    class Mission {
        year: int
        name: str
    }
```

2.7.6. Dependency

• Somewhere in Astronaut class you are using Spaceship class

>>> class Spaceship:
...     name: str
>>>
>>>
>>> class Astronaut:
...     firstname: str
...     lastname: str
...
...     def enter(spaceship: Spaceship):
...         pass

```mermaid
classDiagram
    Astronaut ..> Spaceship

    class Astronaut {
        firstname: str
        lastname: str
        enter(spaceship: Spaceship)
    }

    class Spaceship {
        name: str
    }
```

2.7.7. Cardinality

• 0 - Exactly 0

• 0..1 - Zero or one

• 0..n - Zero to n (where n > 1)

• 0..* - Zero or more

• 1 - Only one

• 1..n - One to n (where n > 1)

• 1..* - One or more

• * - Many

• n..n - {where n>1}
